Jul 23, 2016
3487
Jul 23, 2016
3488
Jul 23, 2016
3489
Jul 23, 2016
Mmmm. Not sure what the wife will think !
Mar 11, 2013
close up of rear pegs removed
Mar 11, 2013

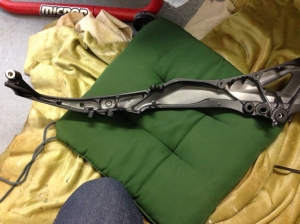

i have removed the pegs already, ENSURE that you place the subframe on a soft surface, so not to scratch the paint. It feels like it wont budge nut eventually there will be a pleasing "crack"as the bolt undoes
Mar 11, 2013

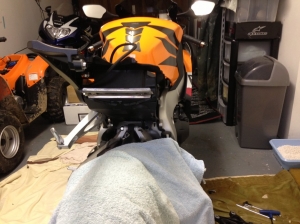

the right subframe is totally removed here
Mar 11, 2013

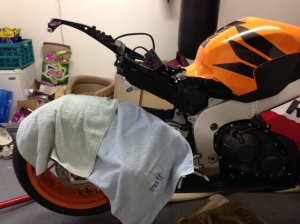

right subframe removed
Mar 11, 2013

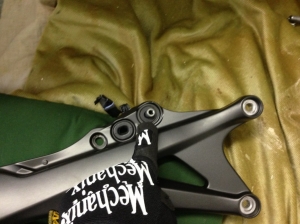

the subframes have a small cylinder/spacer here, make sure you don't lose them
Mar 11, 2013

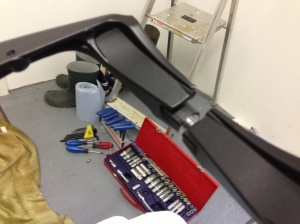

waggle frame to free, but don't lose the small cylinder joining the two halts together
Mar 11, 2013

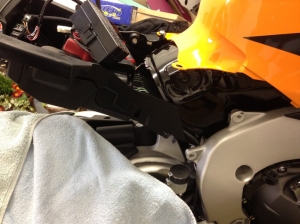

subframe is now off
Mar 11, 2013

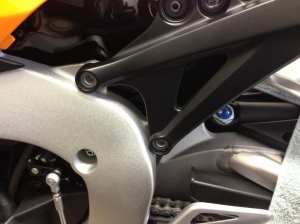

these two bolts need to be undone to remove the subframe. only do one side at a time. In order not to SCRATCH any black paint I would consider a small bit of electrical tape, if possible, to be wrapped around your socket.
Mar 11, 2013

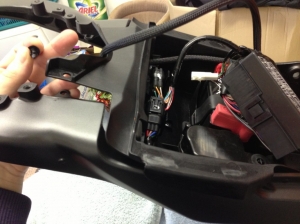

push pins x2 need to be removed which connect the rear of the battery box to the subframe.
Mar 11, 2013

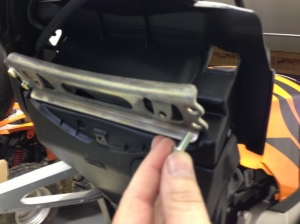

once the mudguard/tail section is removed you will see this bracket/brace,just undo the 2 bolts on the side of the subframe that you are going to take off
Mar 11, 2013

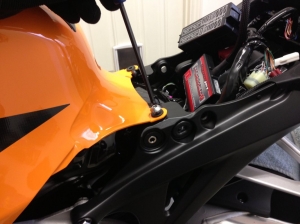

remove these bolts, x2 as they attach the rear of the tank cover to the subframe
Mar 11, 2013

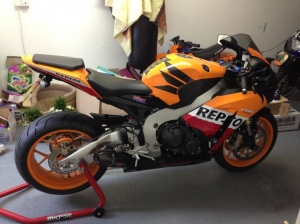

The finished job. allow 2 hours, soft music and a few cups of tea. looks pretty good.
Mar 9, 2013
Just arrived home having picked new bike up from dealer, 20 miles now on clock. Happy chap.
Mar 9, 2013
10 miles on clock. stopped at l'Etaq to take photo.
Mar 5, 2013

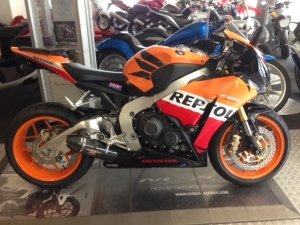

photo 25
Mar 5, 2013

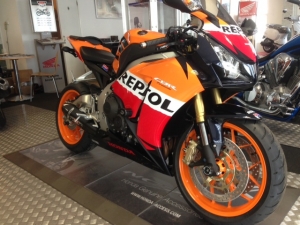

photo 23
Mar 5, 2013

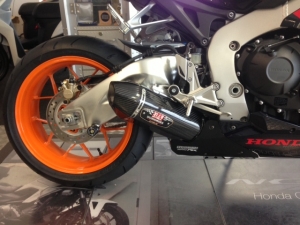

photo 24
Mar 5, 2013
photo 22
