New project purchased.

Discussion in 'Other Bikes' started by exuptoy, Dec 29, 2019.

  1. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136

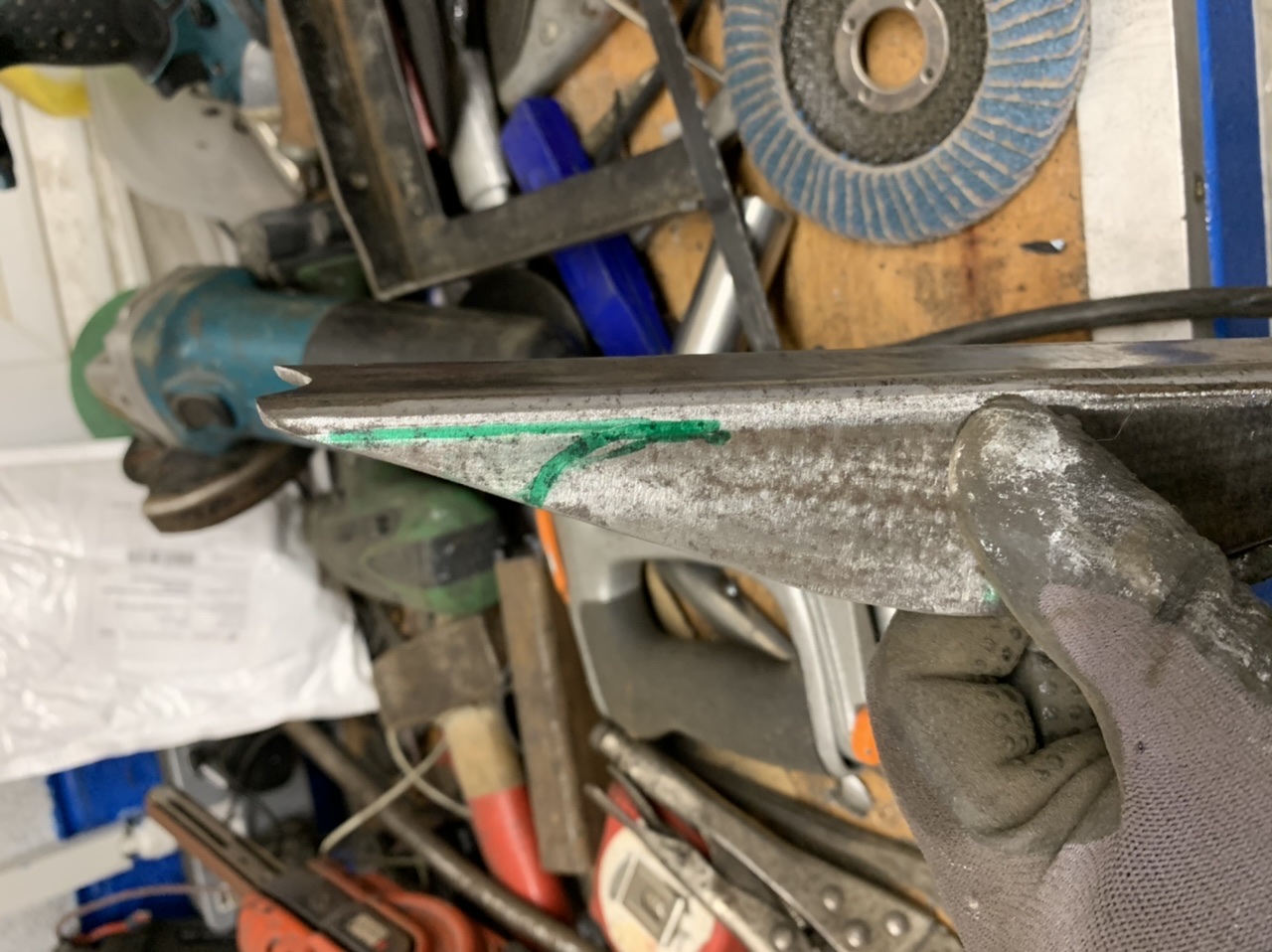

    Tried playing with notched tubes just using straight cuts at 90 degrees.

    [​IMG]

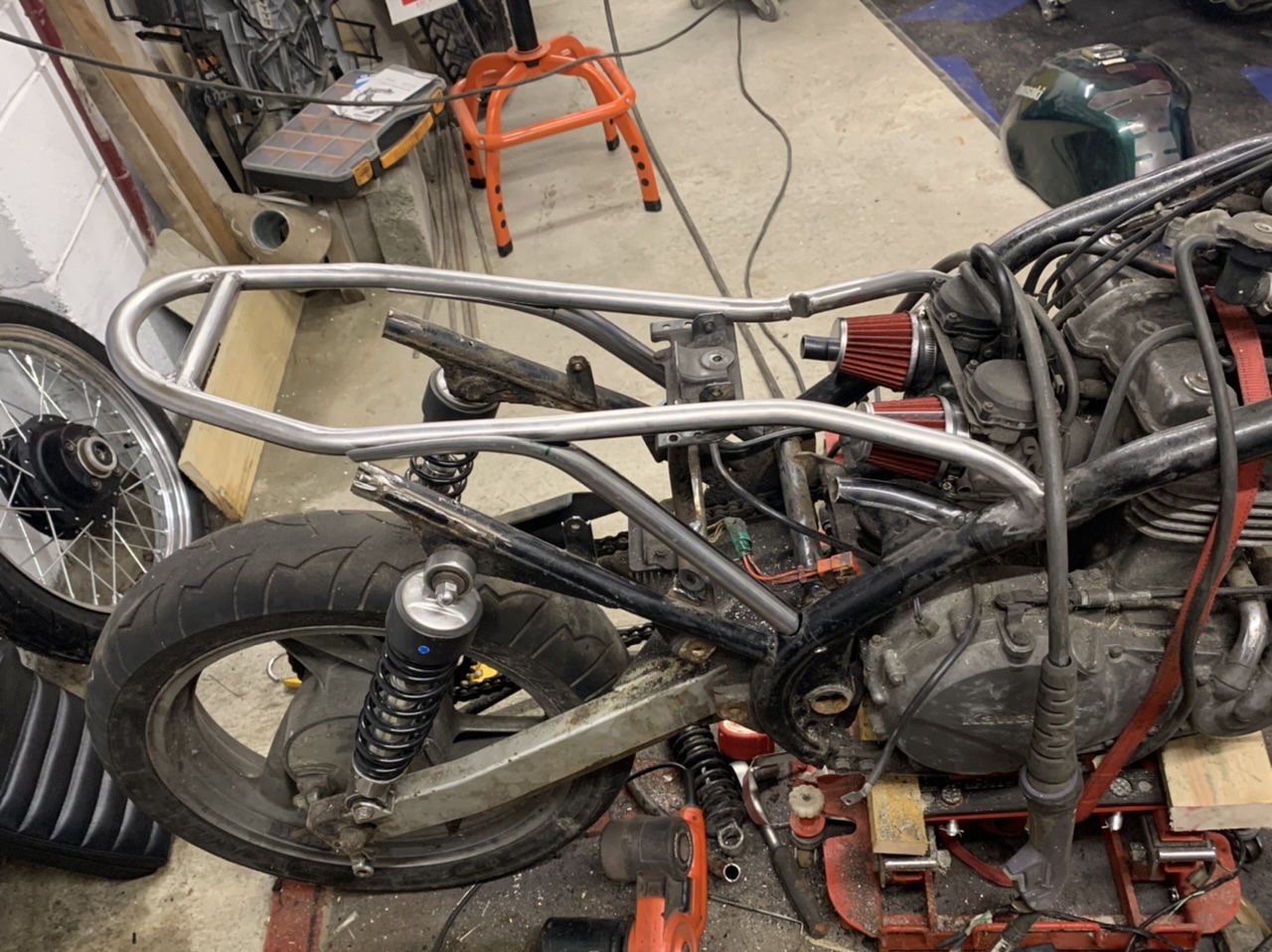

    My 25mm tube arrived an hour ago so I thought it was time to bite the bullet and try the bottom tube.

    Both bent ready to cut in.

    [​IMG]

    [​IMG]

    More tomorrow. Busy afternoon.

    • Like Like x 4
  2. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136

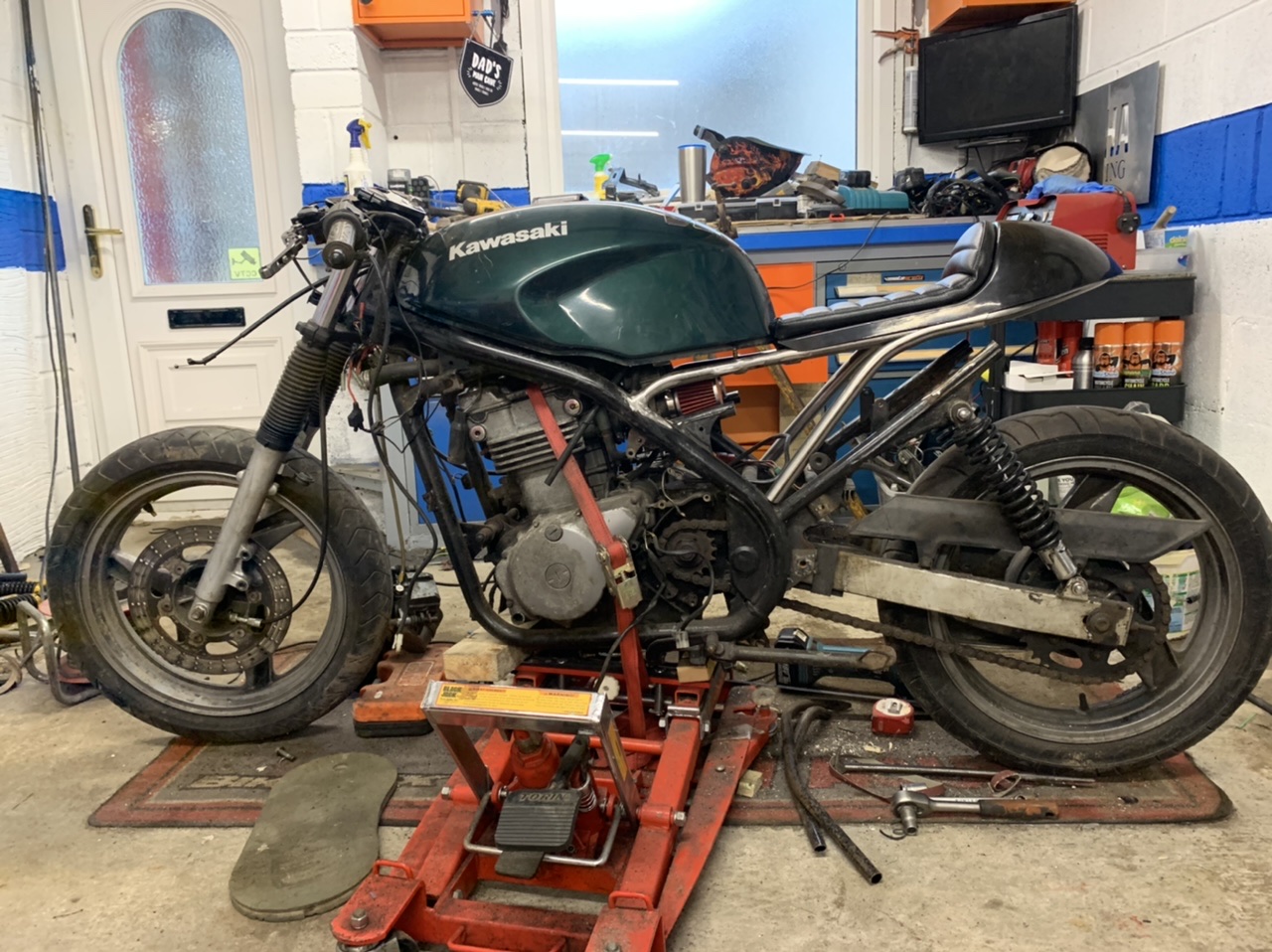

    Got another hour in this evening.

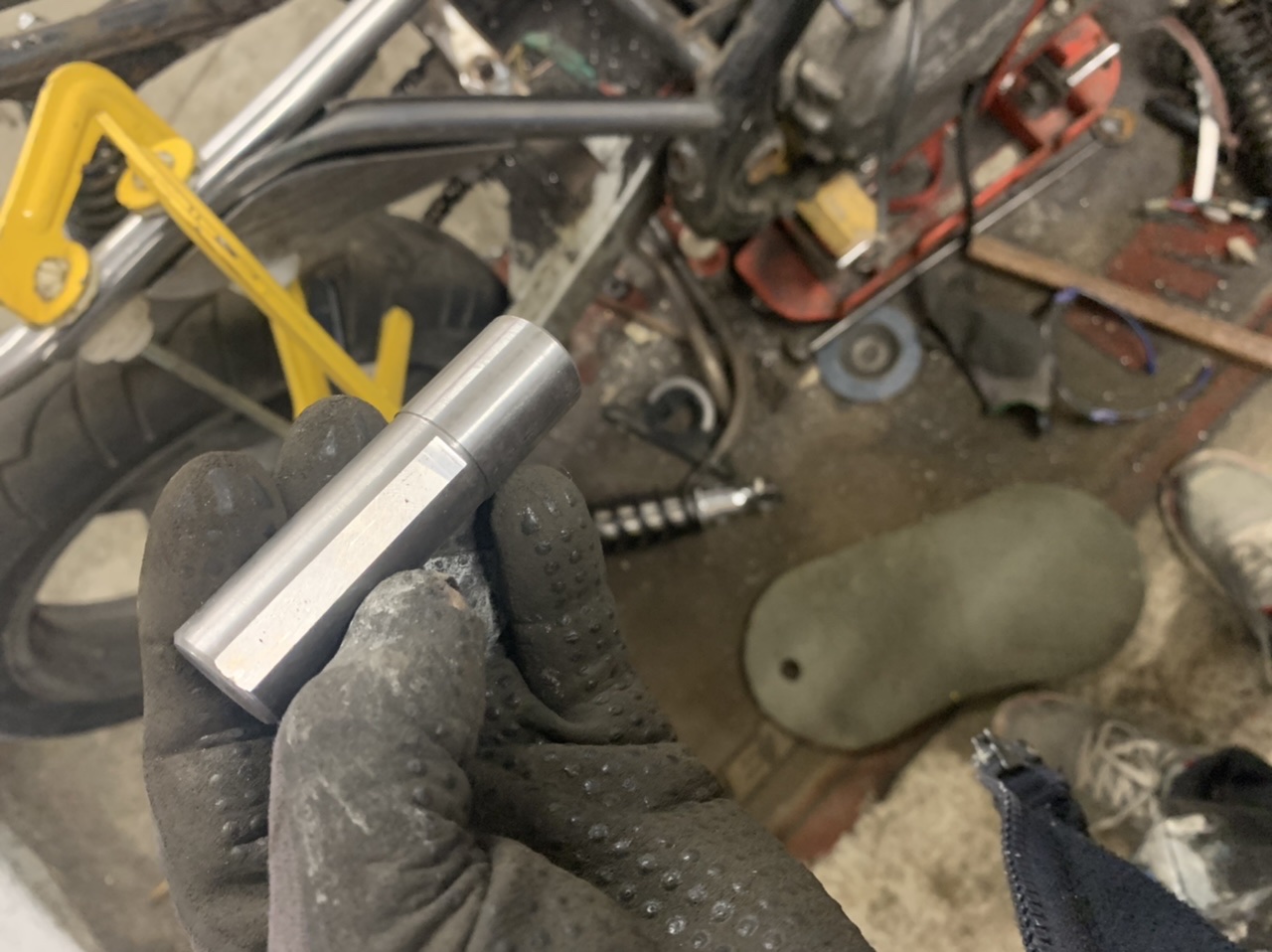

    Gotta get my frame slugs turned down by 0.5mm as they’re too big then I can plug weld them into the frame and stitch it all up before adding braces and gussets.

    [​IMG]

    [​IMG]

  3. nigelrb

    nigelrb Elite Member

    Joined:
    Nov 2, 2017
    Messages:
    9,771
    Likes Received:
    3,275
    A shame Colin Seeley has just passed on. He would have been mightily impressed!:)

    • Thanks Thanks x 1
  4. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136

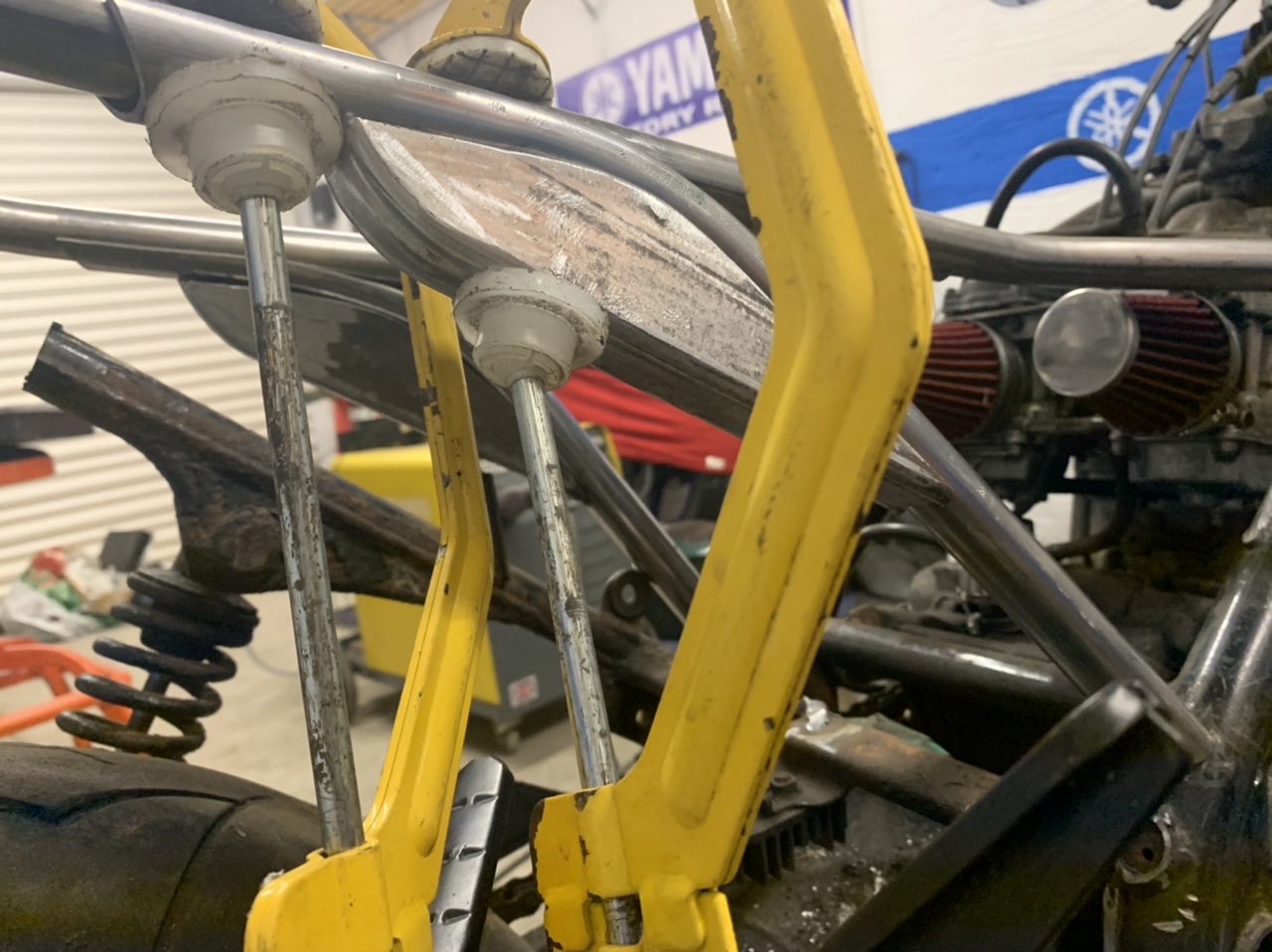

    Whilst waiting for my frame stubs to be modified I decided to concentrate on the tank mount.

    First I welded a couple of stays between the frame and tank so it was in its finished position then I removed the tank mount on the post I’d fitted. Then I drilled out the spot welds, found a piece of 1 inch angle and radiused the ends to go around the inside of the frame then welded the seat mount/tank fixing to the angle, welded it to the subframe and bolted the tank down.


    [​IMG]

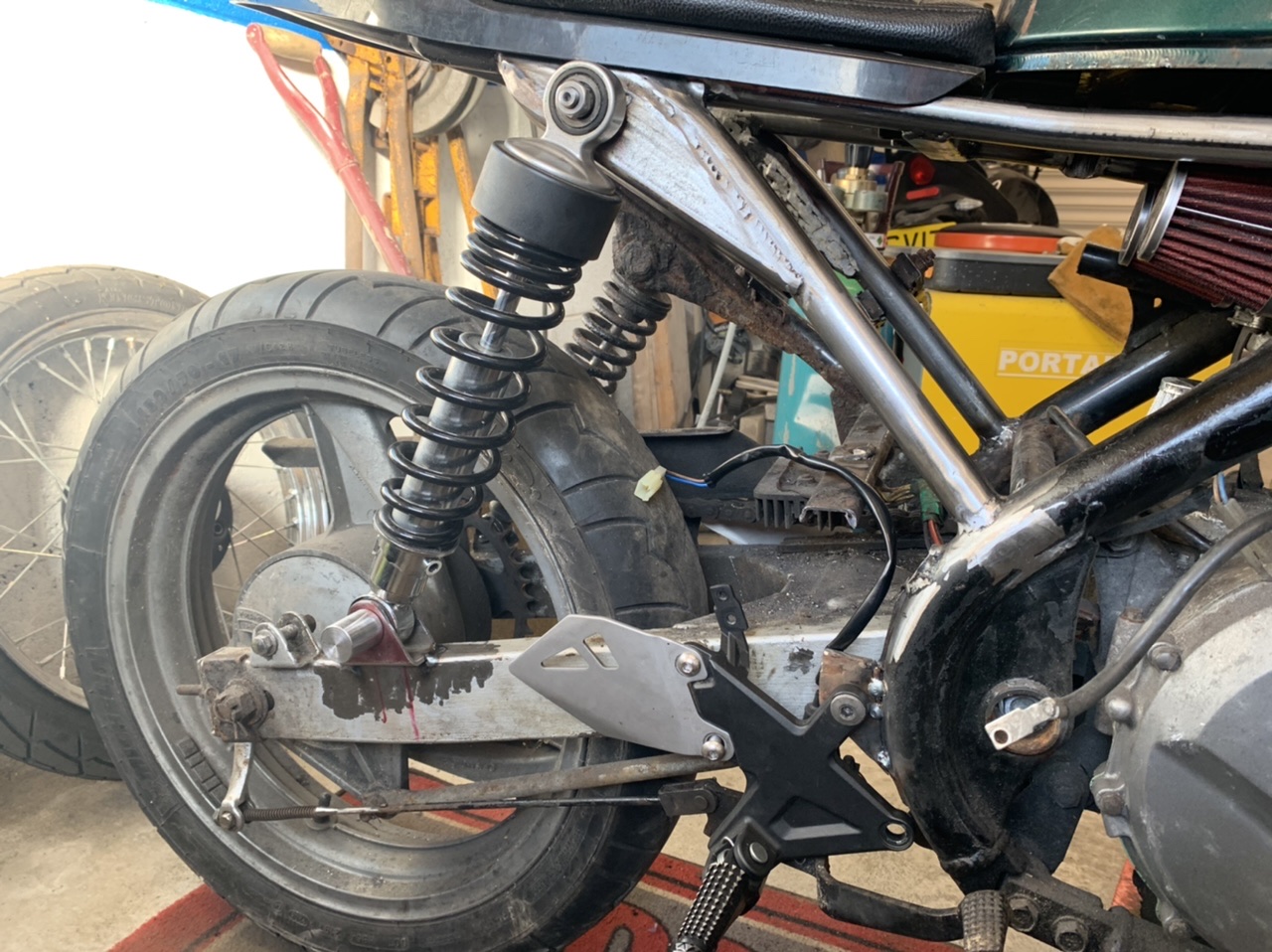

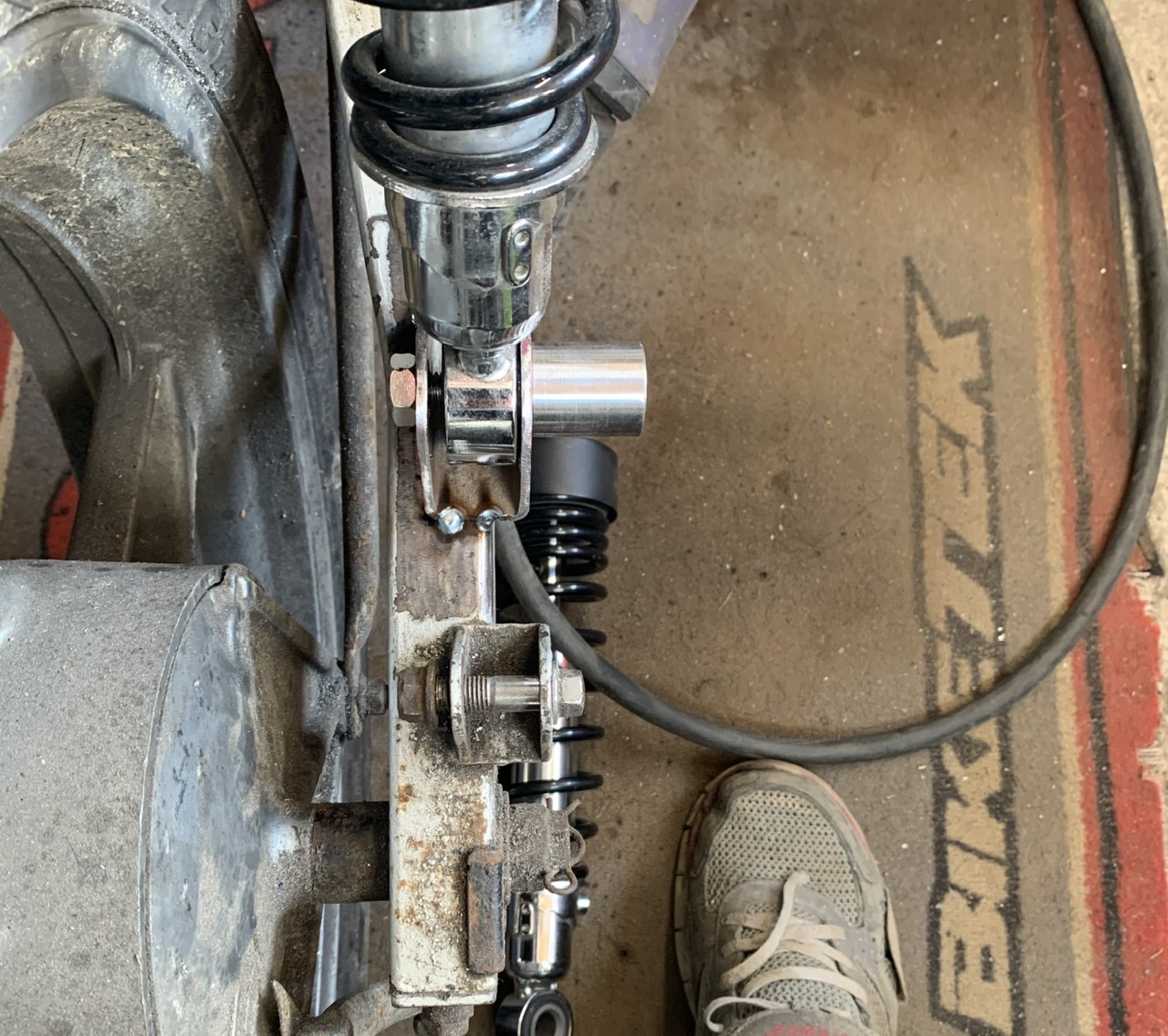

    I then refitted the original shocks to get the ride height correct and to measure where the Triumph shocks will live due to their longer length. Hopefully this will keep the geometry correct.


    [​IMG]


    Next I found some 2x1 box to make the upper shock mount / brace. That was just a case of tracing the line with a pen and cutting with a grinder.


    [​IMG]


    Then I thought it would look better with a radius at the rear so thought I’d put this little how to with pics together.


    First decide on the radius and draw the shape,


    [​IMG]

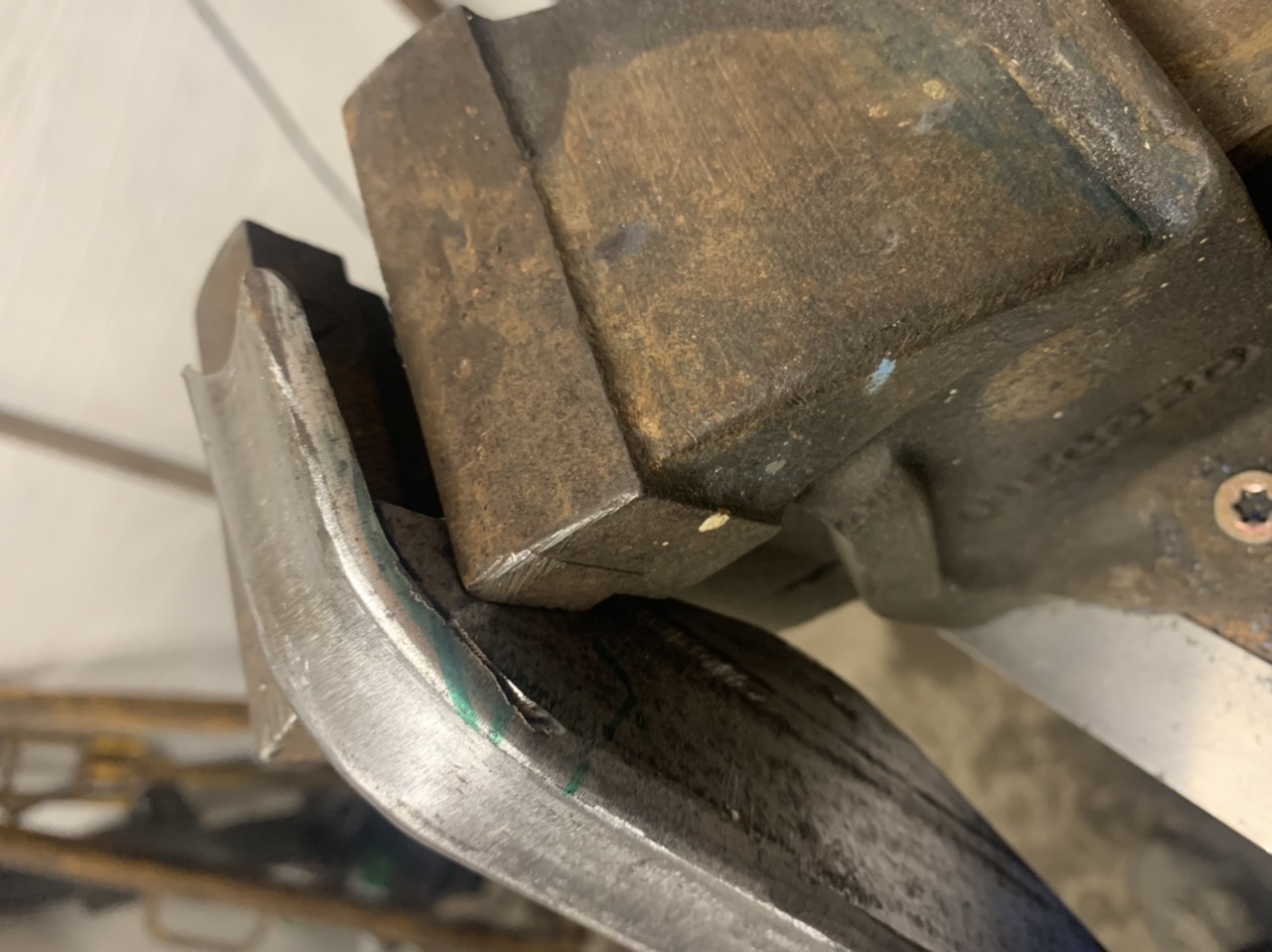

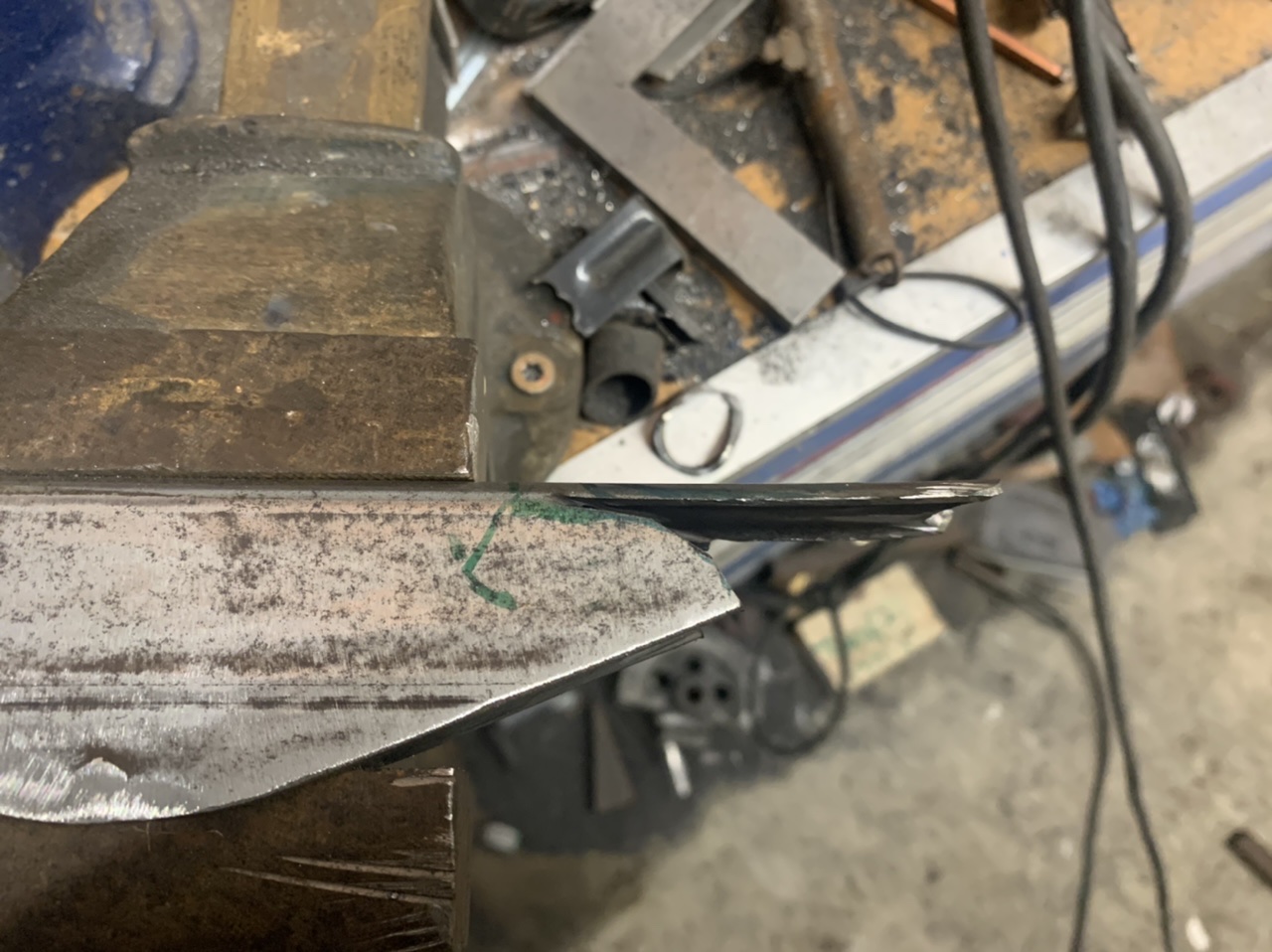

    Then cut around the shape and along the edge leaving the radius from the edge as this will finish it off nicely.


    [​IMG]


    Then beat it around to close up the gap and weld up


    [​IMG]


    [​IMG]


    Darren also turned up with my frame slugs which have been skimmed to clear the internal weld. You can just see the edge inside my tube in the second pic below.


    [​IMG]


    [​IMG]


    I also cut off the lower tube on one side and what was left of the upper then fitted the upper shock mount.


    [​IMG]


    [​IMG]


    [​IMG]


    Still have to drill for the NS frame slug and weld it all up.

    • Like Like x 1
  5. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136

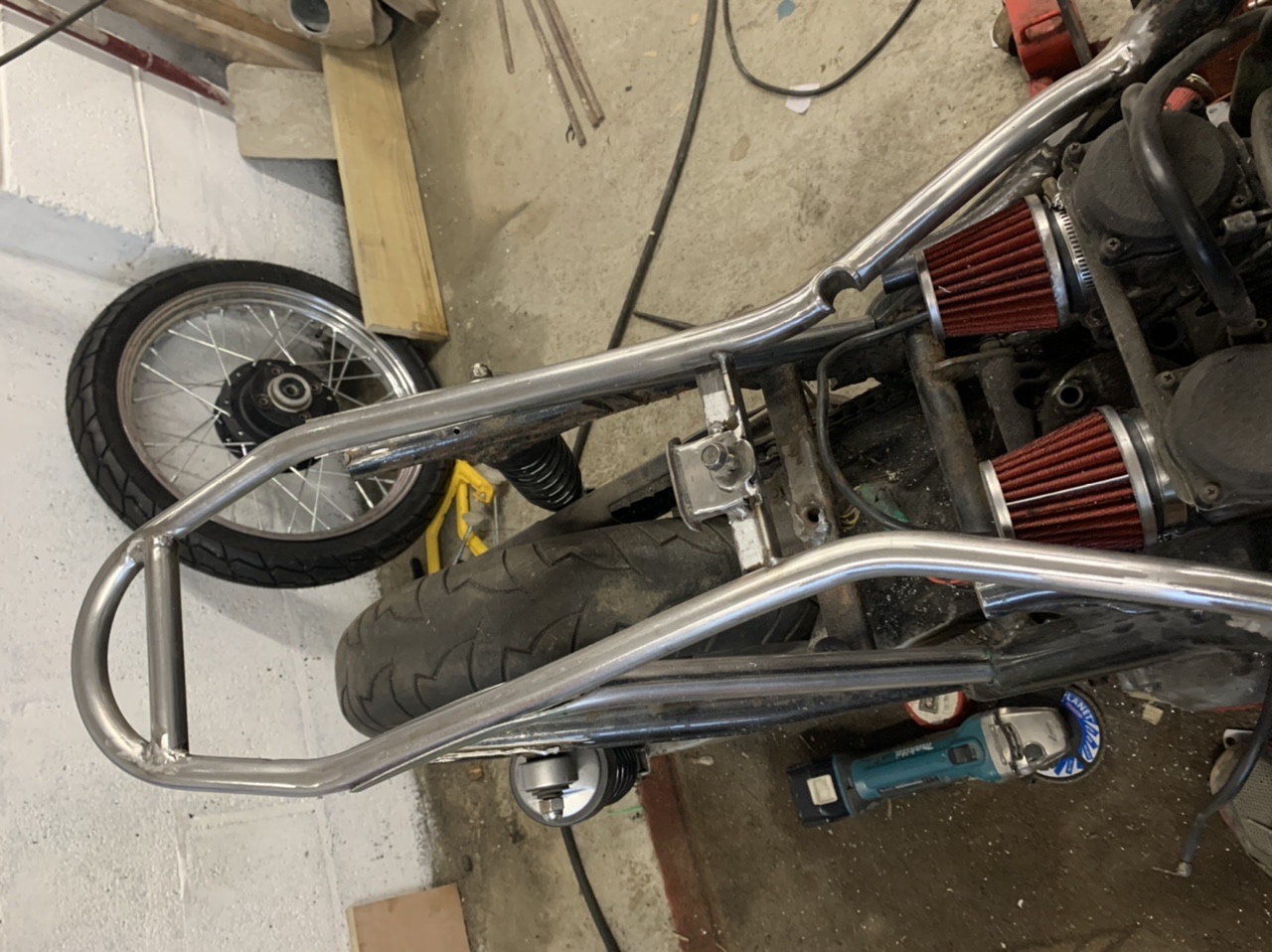

    Yesterday I managed to fit my lower slugs and plug weld them before fitting the diagonals and welding the whole back end up. I hate how it looks so ended up grinding it all back but I think once the engine and forks are out I'll fully weld every seam and hope that the powder coat will blend it all.




    Shock mounts were made but ended up 10mm too short so they need remaking. They'll look like the 2 pics below once done. Still need to make the rear shock mounts. I'll probably do that tomorrow.





    My ZX10 rearsets arrived this morning, cost me £58 on the bay. Ironically the ER5 brake lever fits on the ZX10 spigot as it’s identical!!!! I love Kawasaki for stuff like that. My old GPZ750 was the same.
    Had to cut and weld the brake actuating rod but that’s gonna get replaced once it’s complete anyway. The gear lever will get binned as the frame and sidestand is bang in the way but I can extend the original lever and get it powder coated.


    • Like Like x 1
  6. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136

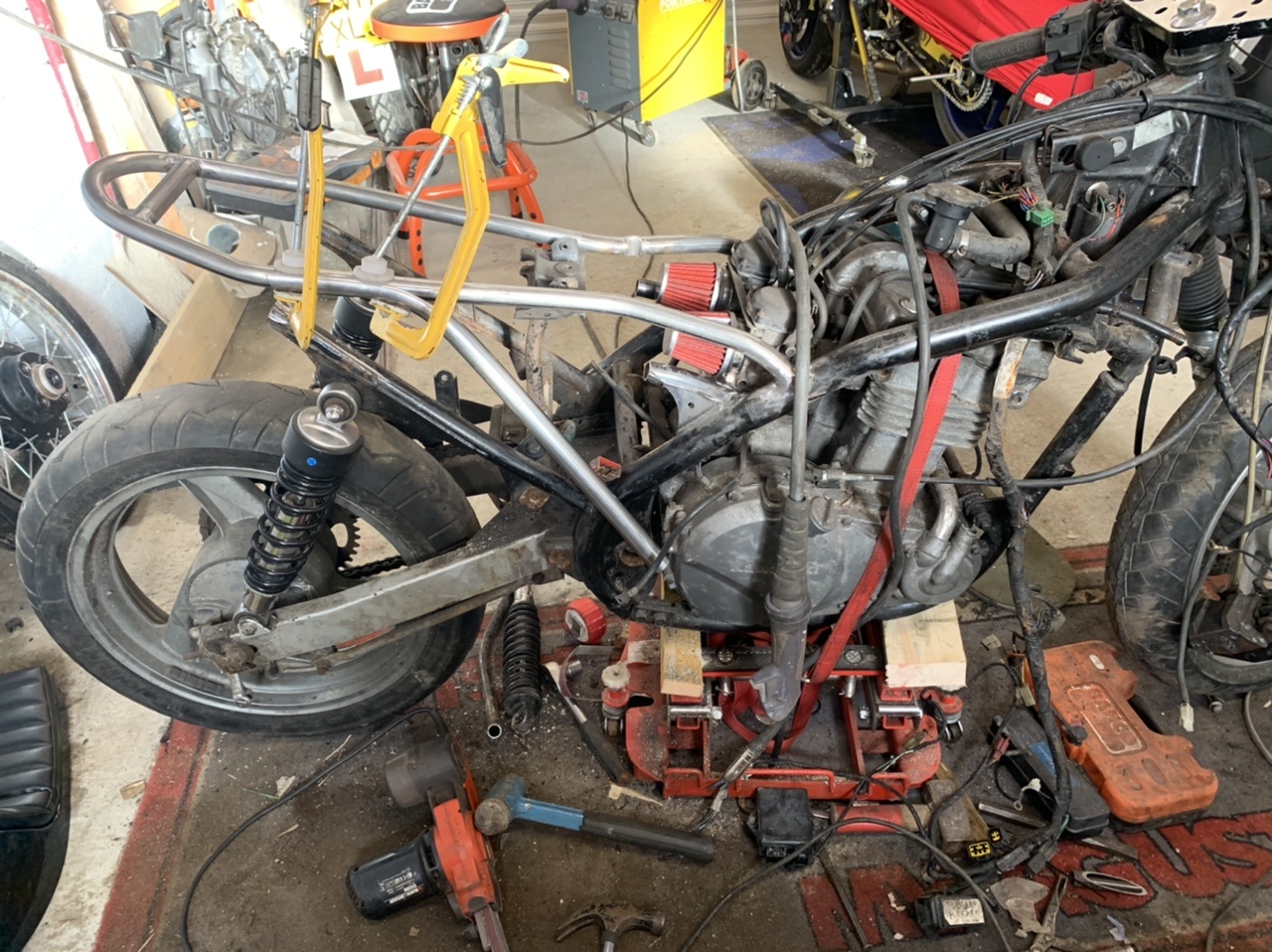

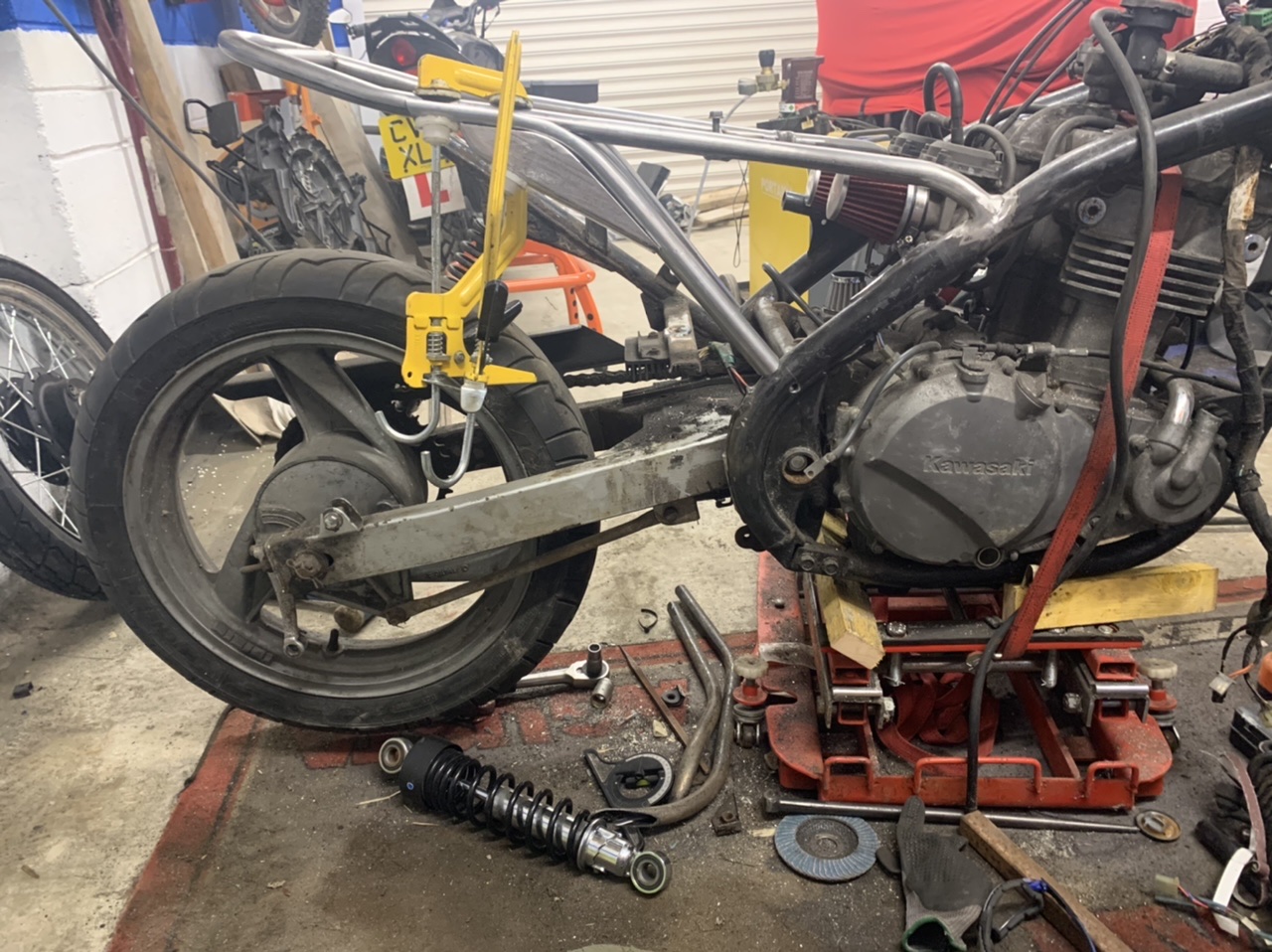

    Just cut out two lower shock mounts and tacked one in place. They’re substantially bigger than the originals. Need a couple of spacers before I finish. Also need to source 2x16mm bolts with domed nuts.

    [​IMG]


    [​IMG]

  7. nigelrb

    nigelrb Elite Member

    Joined:
    Nov 2, 2017
    Messages:
    9,771
    Likes Received:
    3,275
    Coming along nicely. I might have to detail it for you while you're offshore!!;)

    • Funny Funny x 1
  8. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136
    Do you wanna borrow the MT10 while you’re at it :D

  9. nigelrb

    nigelrb Elite Member

    Joined:
    Nov 2, 2017
    Messages:
    9,771
    Likes Received:
    3,275
    No way. It might make me want to go and buy one!!:eek:;)

    • Funny Funny x 1
  10. hitch

    hitch Elite Member

    Joined:
    Jan 27, 2017
    Messages:
    1,661
    Likes Received:
    633
    This is a great.
    I love things like this...mainly because this is so far out of my capabilities.

    Thanks for sharing it all @exuptoy ...it's coming on a treat and I cant wait to see how it all turns out.

    • Agree Agree x 1
    • Thanks Thanks x 1
  11. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136
    Cheers @hitch

    For anyone interested I think the colour will be a Kawasaki metallic brown in keeping with its Kawasaki heritage. Not sure about the orange too, maybe?? What you reckon?


    • Like Like x 2
    • Agree Agree x 1
  12. Lozzy

    Lozzy God Like

    Joined:
    Feb 8, 2015
    Messages:
    7,703
    Likes Received:
    3,761
    I really like the orange with it...makes it pop a bit more

    • Agree Agree x 2
    • Like Like x 1
  13. hitch

    hitch Elite Member

    Joined:
    Jan 27, 2017
    Messages:
    1,661
    Likes Received:
    633
    Bung some glitter in your beard to match it too.

    • Funny Funny x 2
  14. LRJimmy

    LRJimmy Active Member

    Joined:
    Sep 4, 2019
    Messages:
    1,496
    Likes Received:
    544
    Its almost Urban Tiger colours ;)

    • Funny Funny x 1
  15. nigelrb

    nigelrb Elite Member

    Joined:
    Nov 2, 2017
    Messages:
    9,771
    Likes Received:
    3,275
    Good colour choice, more so if you continue the theme onto the rear seat pod.;)

  16. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136
    Yeah, deffo, will probably stripe the tail in orange like the Z9, something like below.


  17. mk3golfcab

    mk3golfcab Well-Known Member

    Joined:
    Feb 4, 2018
    Messages:
    2,103
    Likes Received:
    1,111
    Really been hammering on with this @exuptoy looks like great progress in such a short time frame! Great detailed write ups too, I doth thy hat! :)

    • Agree Agree x 1
    • Thanks Thanks x 1
  18. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136
    Cheers fella, enjoying it too, unfortunately I have an enforced lay off now for 2 weeks as I arrived offshore this evening.
    Just means I have 2 weeks to plan the next bit and spend money on AliExpress and eBay :D

    • Like Like x 3
  19. nigelrb

    nigelrb Elite Member

    Joined:
    Nov 2, 2017
    Messages:
    9,771
    Likes Received:
    3,275
    Happy fishing!:D;)

    • Funny Funny x 1
  20. exuptoy

    exuptoy Elite Member

    Joined:
    Feb 24, 2015
    Messages:
    2,778
    Likes Received:
    1,136
    Been playing with Gimp photo editor, can you tell I'm bored on nightshift! By the way I'm not very good at it!
    Whats the verdict? Brown ok?

    Brown edit2.jpg
